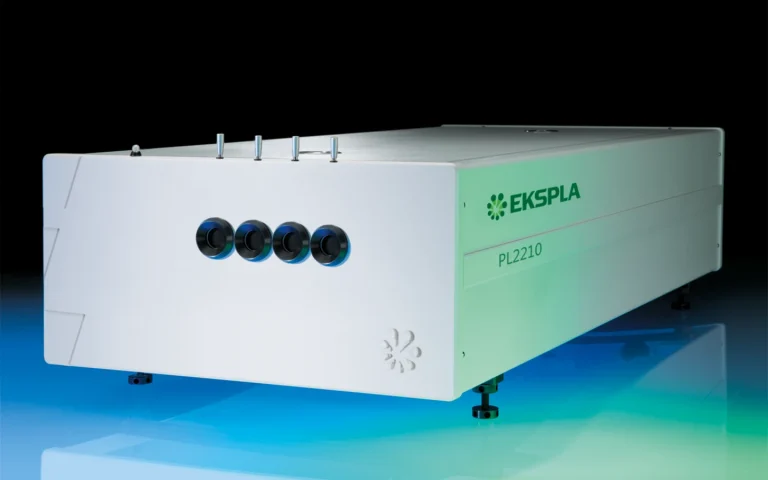

PL2210 series
Diode Pumped Picosecond kHz Pulsed Nd:YAG Lasers
PL2210 series diode-pumped, air-cooled, mode-locked Nd:YAG lasers provide picosecond pulses at a kilohertz pulse repetition rate.
Specifications
| Model | PL2210A | PL2210B | PL2211A |
|---|---|---|---|
| Main specifications 1) | |||
| Output energy | |||
| at 1064 nm | 0.9 mJ | 2.5 mJ | 5 mJ |
| at 532 nm 2) | 0.45 mJ | 1.3 mJ | 2.5 mJ |
| at 355 nm 3) | 0.35 mJ | 0.8 mJ | 1.6 mJ |
| at 266 nm 4) | 0.1 mJ | 0.25 mJ | 0.5 mJ |
| Pulse energy stability (StdDev) 5) | |||
| at 1064 nm | 0.5 % | 0.5 % | 0.5 % |
| at 532 nm | 0.8 % | 0.8 % | 0.8 % |
| at 355 nm | 1.0 % | 1.0 % | 1.0 % |
| at 266 nm | 2.0 % | 2.0 % | 2.0 % |
| Pulse duration (FWHM) 6) | 29 ± 5 ps | 29 ± 5 ps | 29 ± 5 ps |
| Pulse repetition rate | 1 kHz | 1 kHz | 1 kHz |
| Triggering mode | internal/external | internal/external | internal/external |
| Typical TRIG1 OUT pulse delay 8) | -500 … 50 ns | -500 … 50 ns | -500 … 50 ns |
| TRIG1 OUT pulse jitter | < 0.1 ns rms | < 0.1 ns rms | < 0.1 ns rms |
| Spatial mode 9) | Close to Gaussian | Close to Gaussian | Close to Gaussian |
| Beam divergence 10) | < 1 mrad | < 1 mrad | < 1 mrad |
| Beam diameter 11) | 1.7 mm | ~ 3 mm | ~ 3 mm |
| Beam pointing stability (RMS) 12) | < 30 μrad | < 30 μrad | < 30 μrad |
| Pre-pulse contrast | > 200 : 1 | > 200 : 1 | > 200 : 1 |
| Polarization | linear, > 100 : 1 | linear, > 100 : 1 | linear, > 100 : 1 |
| Physical characteristics | |||
| Laser head size (W × L × H) 13) | 500 × 1031 × 249 ±3 mm | 500 × 1031 × 249 ±3 mm | 500 × 1031 × 249 ±3 mm |
| Power supply size (W × L × H) | 365 × 392 × 290 mm | 450 × 375 × 130 ±3 mm | 550 × 600 × 550 ± 3 mm (19″ standard, MR-9) |
| Operating requirements | |||
| Water service | not required, air cooled | not required, air cooled | stand-alone chiller |
| Room temperature | 22 ± 2 °C | 22 ± 2 °C | 22 ± 2 °C |
| Relative humidity | 20 – 80 % (noncondensing) | 20 – 80 % (noncondensing) | 20 – 80 % (noncondensing) |
| Power requirements | 100 – 240 V AC, single phase 50/60 Hz | 100 – 240 V AC, single phase 50/60 Hz | 100 – 240 V AC, single phase 50/60 Hz |
| Power consumption 14) | < 1 kW | < 1 kW | < 1.5 kW |
| Model | PL2210A | PL2210B | PL2211A |
|---|
- Due to continuous improvement, all specifications are subject to change without notice. Parameters marked typical are not specifications. They are indications of typical performance and will vary with each unit we manufacture. Unless stated otherwise, all specifications are measured at 1064 nm and for basic system without options.
- For PL2210 series laser with –SH, -SH/TH, -SH/FH or -SH/TH/FH option. Outputs are not simultaneous.
- For PL2210 series laser with –TH, -SH/TH or -SH/TH/FH option. Outputs are not simultaneous.
- For PL2210 series laser with -SH/FH or -SH/TH/FH option. Outputs are not simultaneous.
- Averaged from pulses, emitted during 30 sec time interval.
- Optional 80 or 22 ps ± 10% duration. Pulse energy specifications may differ from indicated here.
- With respect to optical pulse. <10 ps rms jitter is provided optionally with PRETRIG feature.
- TRIG1 OUT lead or delay can be adjusted with 0.25 ns steps in specified range.

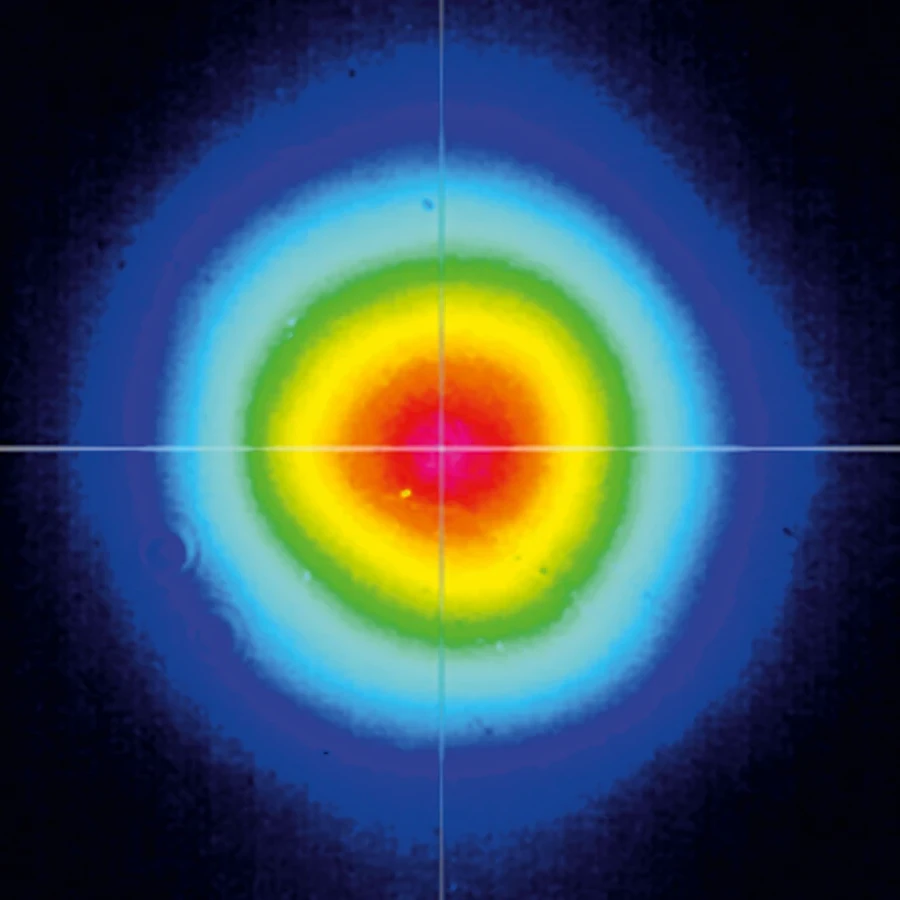

- Near field Gaussian fit is >90%.
- Average of X- and Y-plane full angle divergence values measured at the 1/e2 level at 1064 nm.
- Beam diameter is measured at 1064 nm at the 1/e2 point.
- Beam pointing stability is evaluated from fluctuations of beam centroid position in the far field.
- 456×1233×249 mm (W×L×H) laser head size might be required for some optional configurations.
- At 1 kHz pulse repetition rate.
Note: Laser must be connected to the mains electricity all the time. If there will be no mains electricity for longer that 1 hour then laser (system) needs warm up for a few hours before switching on.
Ordering information of PL2210 lasers.
