Mid-IR Tunable Picosecond Single-Housing Laser System PT501

PT501 series

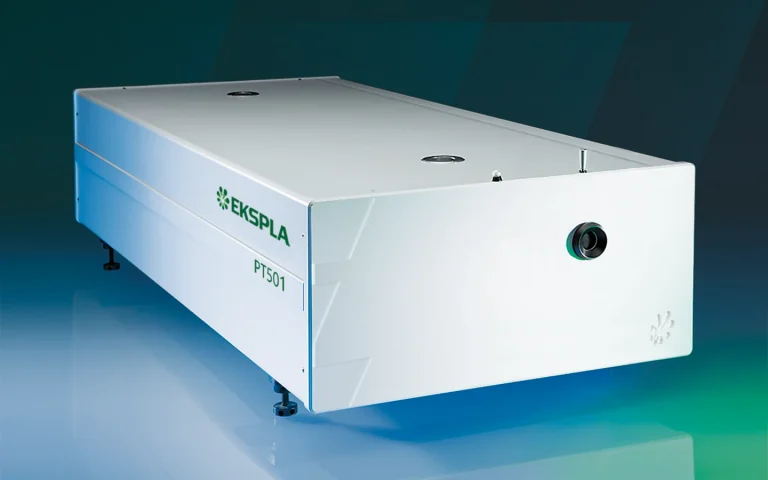

Mid-Infrared Single Housing Tunable Picosecond Laser System

PT501 covers 2300 to 16000 nm at 100 Hz repetition rate, with linewidth under 3 cm⁻¹ across the entire tuning range. The pump laser and OPO share a single compact housing, which removes the alignment interface between separate units and eliminates the main source of long-term pointing drift. Air cooling means no external water supply is needed.

Download datasheet

PT501

Overview Specifications Performance Drawings Downloads

Key parameters & system overview

Features

Tuning range 2300 – 16000 nm (4345 – 625 cm^‑1)
Hands-free tuning: motorized for the entire tuning range
Linewidth <3 cm^‑1 in the entire tuning range
Repetition rate 100 Hz
Air cooled – external water supply is not required
Beam direction stability in the entire tuning range
Single housing: integrates a pump laser and OPO in a single housing
PC control via USB (virtual COM port), RS232, LAN using REST API commands
Fast wavelength scan (sweep)

Applications

Infrared spectroscopy
SFG (sum frequency generation spectroscopy)

Description

PT501 integrates the pump laser and OPO in one housing, covering 2300 to 16000 nm at 100 Hz. A shared frame removes the inter-unit alignment interface that separate-box MIR systems require. That interface is the main origin of long-term pointing drift. The system is air-cooled; no external water supply is needed.

Wavelength tuning is fully automatic. Closed-loop micro-stepping motors drive the tuning elements, and thermo-controllers maintain the nonlinear crystal temperatures. The sweep from 2300 to 16000 nm runs without manual adjustment, including the transition between OPO and DFG output stages.

For customer convenience, the laser can be operated from a master device or a personal computer using various interfaces. Depending on the system configuration, control is available via the USB interface (REST API over RNDIS or VCP with ASCII commands), the RS-232 interface (ASCII commands), the LAN interface (REST API), or from the remote control pad with a backlit display that remains easy to read even while wearing laser safety glasses.

Communication interface	Description
USB *	REST API over RNDIS
RS232	ASCII commands
LAN	REST API
Remote control pad	With a backlit display

* Default. Other option – ASCII commands over virtual serial port.

Available models

Model	Features
PT501	Provides a narrowband radiation with a linewidth < 3 cm^‑1 in the entire tuning range: 2300 – 16000 nm (4345 – 625 cm^‑1). Repetition rate 100 Hz.

Specifications

Model	PT501
Main Specifications ¹⁾
Tuning range	2300 – 16000 nm

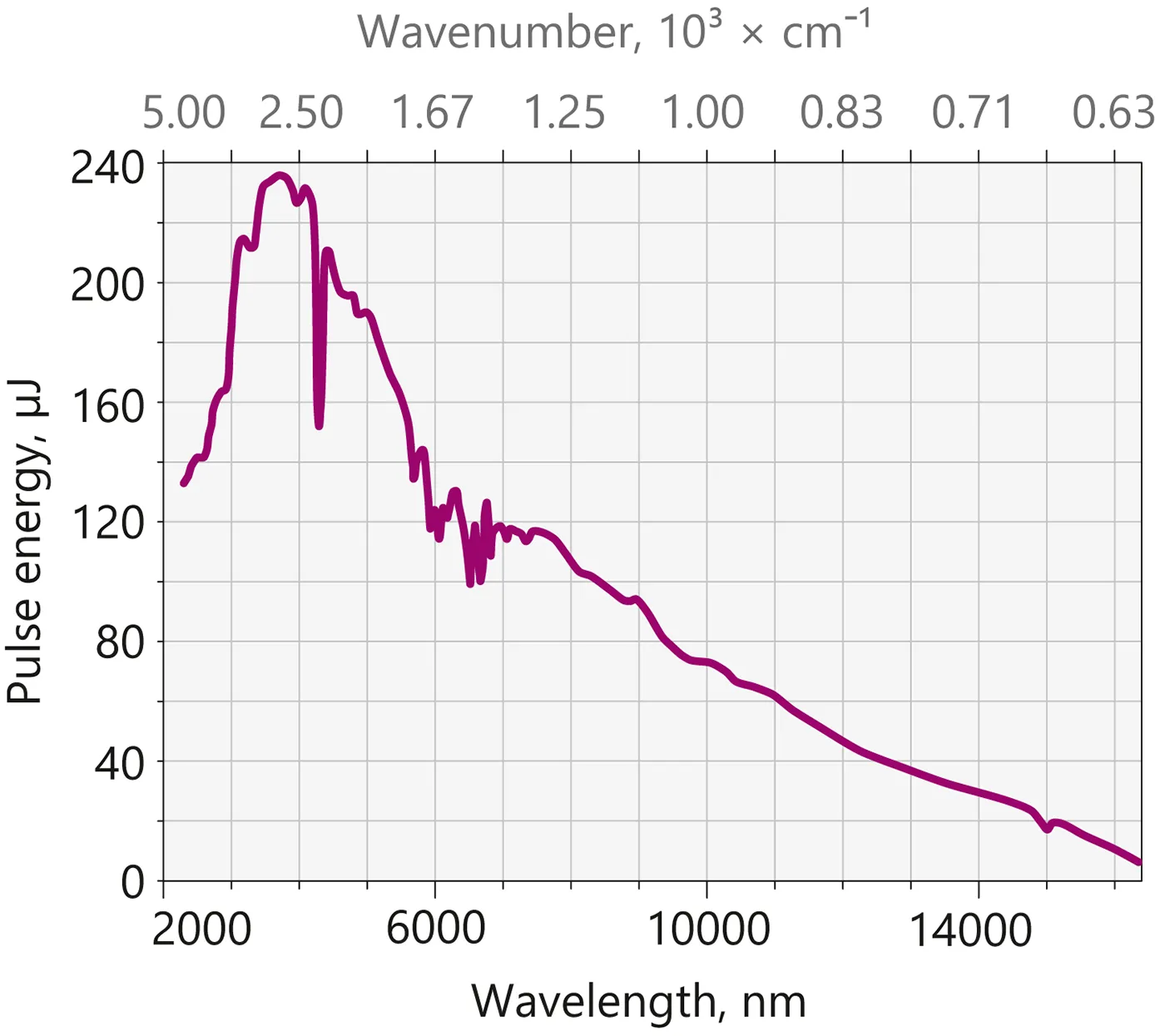

Output pulse energy
at 3500 nm	> 200 µJ
at 10000 nm	> 50 µJ
Bandwidth	< 3 cm^‑1
Pulse repetition rate	100 Hz
Tuning resolution	< 0.5 cm^‑1
Typical beam size ²⁾	~4 mm
Beam divergence ³⁾	< 3 mrad
Beam pointing stability	≤ 100 μrad rms
Beam polarization	horizontal , > 100:1
Wavelength sweep	available
Optical pulse jitter
Internal triggering regime ⁴⁾	< 50 ps (StdDev.) in respect to TRIG1 OUT pulse
External triggering regime ⁵⁾	~3 ns (StdDev.) in respect to SYNC IN pulse
TRIG1 OUT pulse delay	Positive pulse with controllable delay. Pulse width ~100 ns. Default delay ~250 μs before optical pulse up to 10 ms.
Physical characteristics
Laser unit size (W × L × H)	~ 508 × 1030 × 244 mm
Power supply unit size (L×W×H)	450 × 450 × 140 mm
Operating Requirements
Mains requirements	100 – 240 V AC single phase, 47 – 63 Hz
Power consumption	< 0.5 kW
Operating ambient temperature	22 ± 2 °C
Relative humidity	20 – 80 % (non-condensing)
Cooling	air cooled
Cleanness of the room	not worse than ISO Class 9

Model	PT501

Due to continuous improvement, all specifications are subject to change without notice. Parameters marked typical are not specifications. They are indications of typical performance and will vary with each unit we manufacture. Unless stated otherwise, all specifications are measured at 3500 nm for PT501 units for basic system without options.
Beam diameter is measured at the 1/e² level.
At 3000 nm, Full angle measured at the FWHM point
With respect to TRIG1 OUT pulse. <10 ps jitter is provided with PRETRIG option.
With respect to SYNC IN pulse.
