Processing of metal

Femtosecond lasers enable the production of complex shapes and features, while also providing the capability to perform black/white marking and coloring without the need for chemical additives.

Glass Metal Polymer Other materials
Metal

Various metal type processing

Femtosecond lasers excel in machining metals, primarily due to their ultra-short pulse duration, which ensures superior processing quality with no burrs, minimal heat-affected zones, and high precision. Metals, especially thin metal foils, are integral to modern engineering and manufacturing. Femtosecond lasers enable the production of complex shapes and features in these materials.

The FemtoLux 30 has been evaluated for cutting various metals, including stainless steel, copper, and kovar. By carefully optimizing the processing parameters, high-quality results have been achieved across different metal types.

Stainless steel cutting

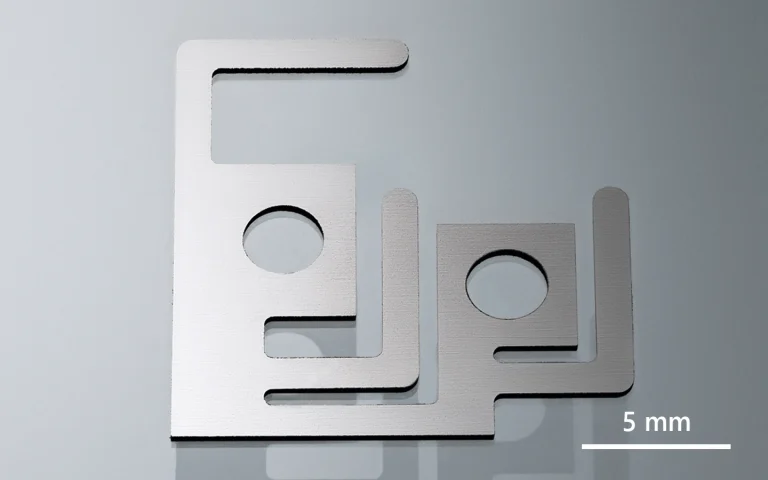

Stainless steel cutting.

Courtesy of FTMC.

Manufacturing examples

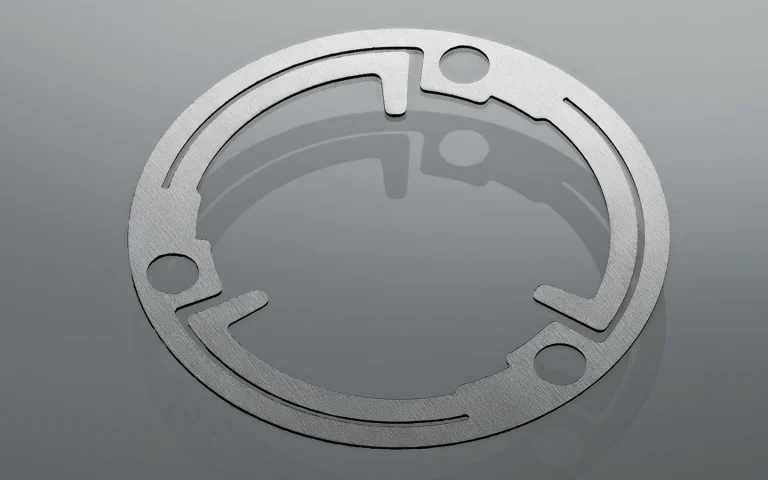

Stainless steel cutting.

Courtesy of FTMC.

Scanning electron microscope image of processed stainless steel sample.

Courtesy of FTMC.

Stainless steel cutting.

Courtesy of FTMC.

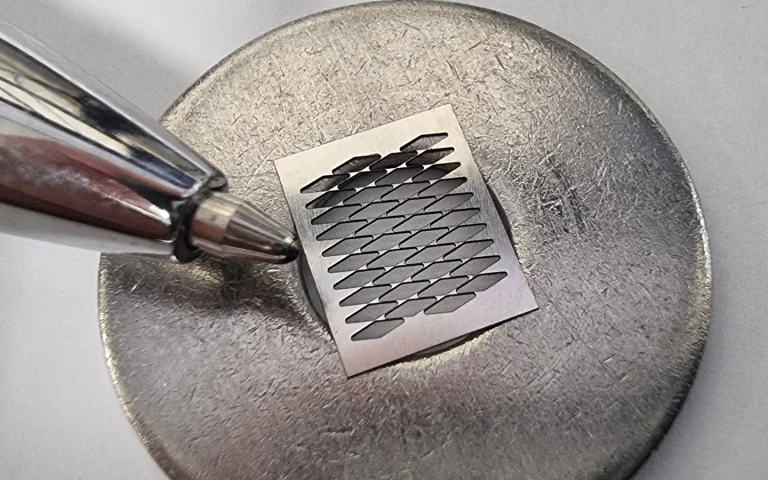

100 µm thickness stainless steel cutting.

Courtesy of Laser Micromachining Ltd.

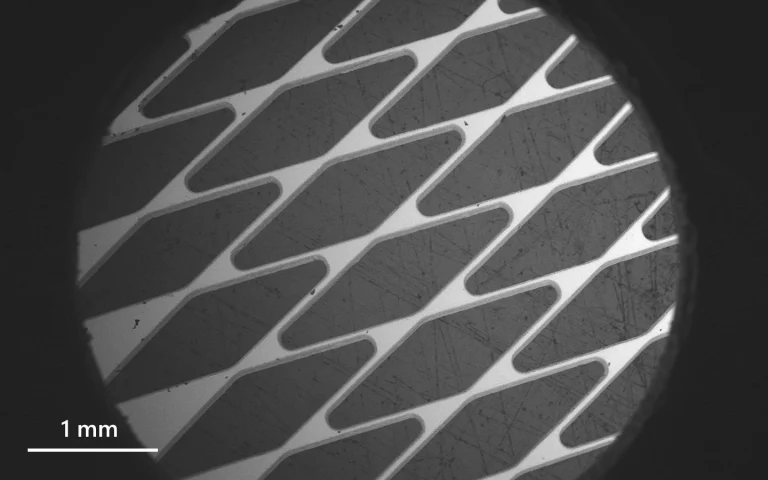

Scanning electron microscope image of processed stainless steel sample.

Courtesy of Laser Micromachining Ltd.

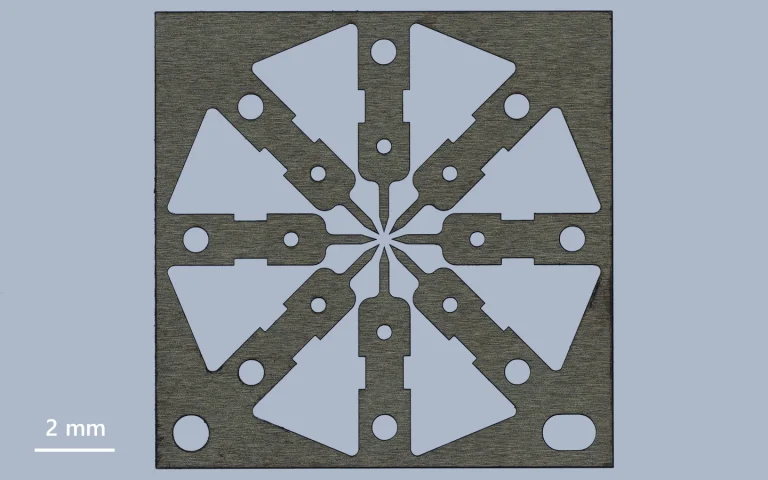

100 µm thickness stainless steel cutting.

Courtesy of Laser Micromachining Ltd.

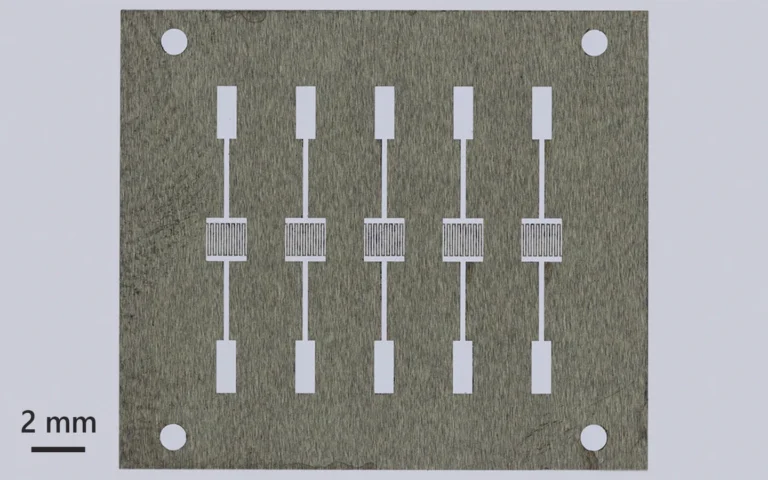

50 µm thickness stainless steel cutting.

Courtesy of Laser Micromachining Ltd.

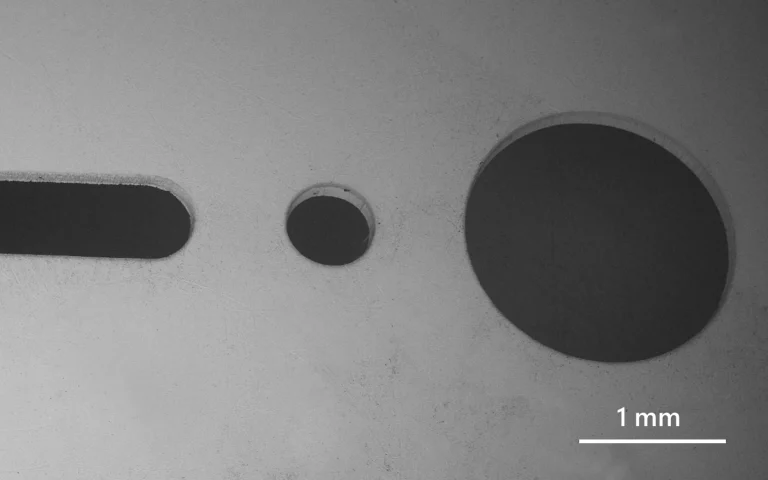

125 µm thickness tantalum cutting.

Courtesy of Laser Micromachining Ltd.

Kovar cutting.

Courtesy of Laser Micromachining Ltd.

Recommended products

FemtoLux

Industrial Femtosecond Lasers
  • 50 W / >300 µJ at 1030 nm
  • 20 W / >50 µJ at 515 nm
  • 10 W / >25 µJ at 343 nm
  • < 350 fs – 1 ps
  • Single shot to 4 MHz (AOM controlled)
  • MHz, GHz, MHz+GHz burst modes
