PhotoSonus X
High Output Power DPSS Tunable Laser for Photoacoustic Imaging
Having high output energy, a broad wavelength tuning range, up to 100 Hz repetition rate and fast wavelength switching makes it a perfect photoacoustic imaging laser source for gaining high-resolution images and ensuring high data acquisition rate.
Features
- Ultra-wide signal tuning range from 650 to 1300 nm
- Fully motorized wavelength tuning
- Fast wavelength switching
- Externally triggerable
- High, up to 90 mJ pulse energy from OPO
- 100 Hz or 50 Hz pulse repetition rate
- Certification ready
- Quiet operation < 60 dB
- Integrated DPSS pump laser and OPO into a single housing
- Fiber bundle or fiber
- Signal and idler through the same output (optional)
- Integrated energy meter (optional)
- Electromechanical output shutter with laser self-test capability
Description
PhotoSonus X is a perfect solution for photoacoustic imaging in pre-clinical and clinical use and when fast sample scanning is required.
Having high output energy of up to 90 mJ at the peak, a broad wavelength tuning range from 650 to 2600 nm, high pulse repetition rate up to 100 Hz and fast wavelength switching makes it a perfect photoacoustic imaging source for gaining high-resolution images and ensuring high data acquisition rate. Moreover, being built on a diode pumped solid-state laser platform, PhotoSonus X assures significantly quieter operation (< 60 dB) compared with flash-lamp pumped lasers, which is very beneficial for clinical use.
Diode pumped laser technology and well-engineered system design ensures high reliability and low-cost system operation. PhotoSonus X output can be coupled with almost any type of fiber bundle.
With additional options of an internal energy meter and electromechanical shutter with laser self-test capability, PhotoSonus X can be ready for certification in clinical photoacoustic applications.
Specifications
| Model | PhotoSonus X-50 | PhotoSonus X-100 |
|---|---|---|
| OPO 1) | ||
| Wavelength range | ||
| Signal | 650 – 1300 nm | 650 – 1300 nm |

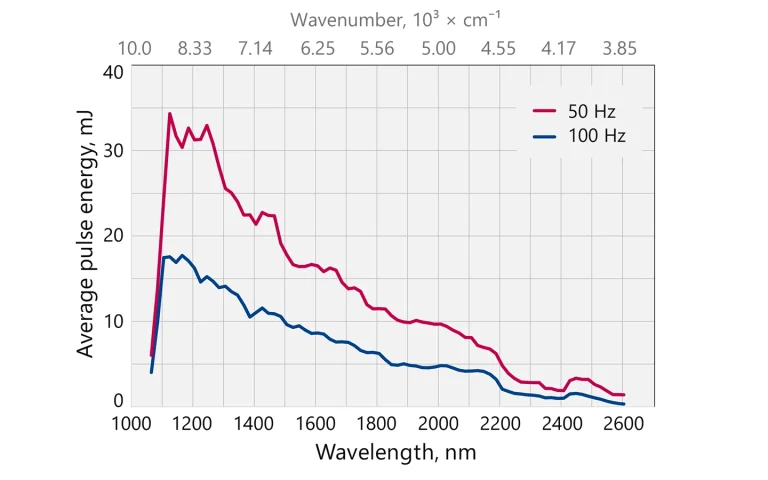

| Idler (optional) | 1065 – 2600 nm | 1065 – 2600 nm |
| OPO output MAX pulse energy 2) | > 90 mJ | > 50 mJ |
| Pulse repetition rate 3) | 50 Hz | 100 Hz |
| Scanning step | ||
| Signal | 0.1 nm | 0.1 nm |
| Idler | 1 nm | 1 nm |
| Pulse duration 4) | 2 – 5 ns | 2 – 5 ns |
| Signal linewidth 5) | < 15 cm‑1 | < 10 cm‑1 |
| Typical signal beam diameter (1/e2) 6) | 6 ± 1 mm | 6 ± 1 mm |
| Control interfaces | LAN, RS232 | LAN, RS232 |
| Physical characteristics | ||
| Cooling | Closed loop air-water cooled 7) | Closed loop air-water cooled 7) |
| Unit size (W × L × H mm) | 551 × 400 × 162 mm | 551 × 400 × 162 mm |

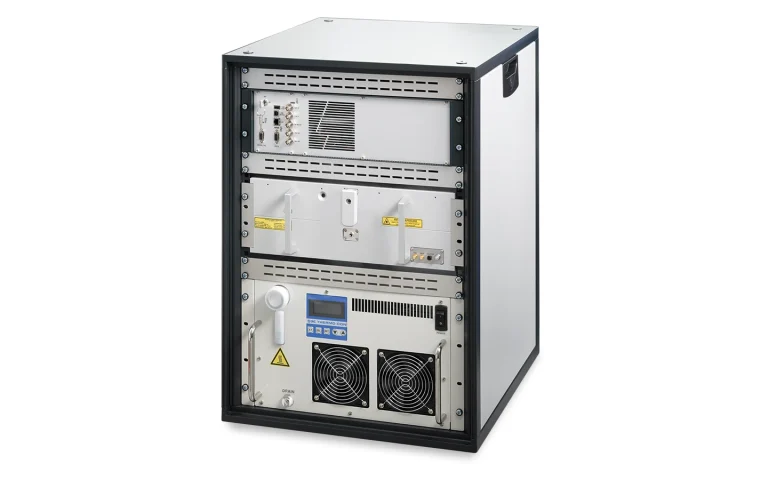

| Power supply size (W × L × H) | 483 × 390 × 140 mm | 483 × 390 × 140 mm |
| Umbilical length | 0.5 m | 0.5 m |
| Operating requirements | ||
| Room temperature | 18 – 27 °C | 18 – 27 °C |
| Relative humidity | 20 – 80 % (non-condensing) | 20 – 80 % (non-condensing) |
| Power requirements 8) | 100 – 240 V AC, single phase, 50/60 Hz | 100 – 240 V AC, single phase, 50/60 Hz |
| Power consumption | < 2 kW | < 2 kW |
| Model | PhotoSonus X-50 | PhotoSonus X-100 |
|---|
- Due to continuous improvement, all specifications are subject to change without notice. The parameters marked typical are not specifications. They are indications of typical performance and will vary with each unit we manufacture. Unless stated otherwise all specifications are measured at 700 nm.

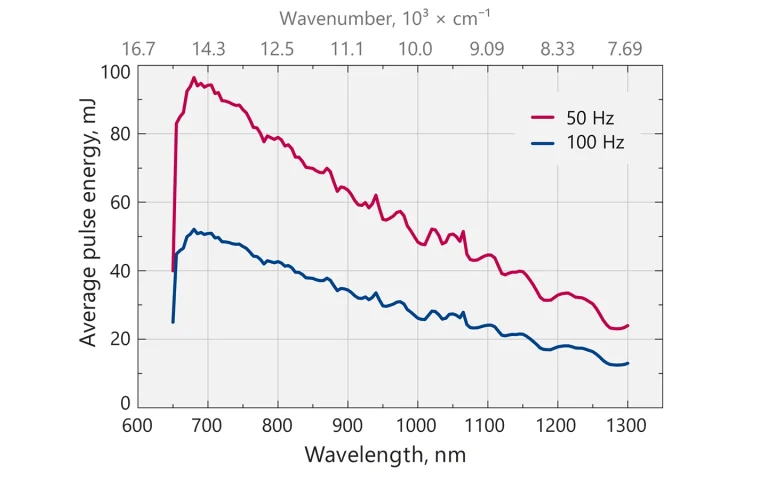

- Measured at the free space output. See tuning curves for typical energy levels at different wavelengths.
- Other fixed pulse repetiton rates are available upon request.
- FWHM measured with photodiode featuring 1 ns rise time and 300 MHz bandwidth oscilloscope.
- At 700 nm or higher wavelength.
- Measured at the free space output at 700 nm wavelength.
- Using external chiller.
Note: Laser must be connected to the mains electricity all the time. If there will be no mains electricity for longer that 1 hour then laser (system) needs warm up for a few hours before switching on.
Ordering information of PhotoSonus X.
Performance and drawings
